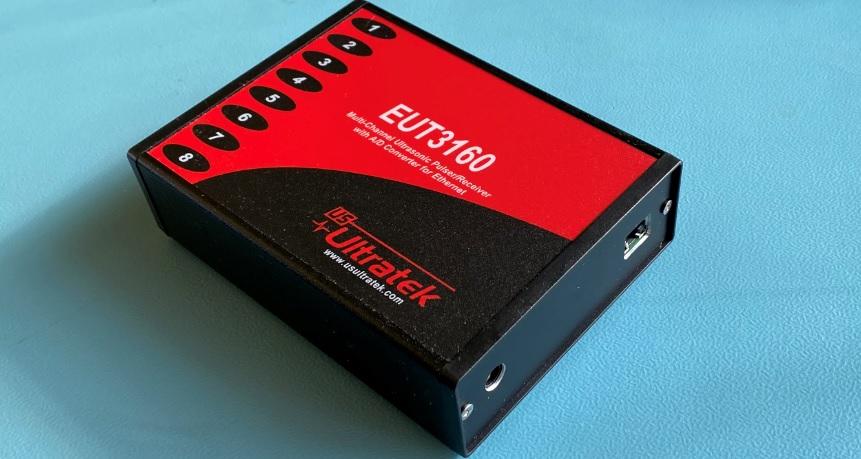

EUT3160(T) with Ethernet Interface

FEATURES:

Built-in square pulser and tone burst pulser

Tone burst pulser for high attenuating material testing

Ethernet communication for laptop and desktop computers

Real-time peak detections with 4 fixed and/or slave gates

One-Device Design: pulser/receiver and A/D converter

12-bit A/D conversion resolution up to 160 MSPS

On-board encoder counters for on-position acquisition

Up to 16 channel for single device and up to 255 devices on Ethernet

Hardware peak detection for minimal data transfer at high PRF

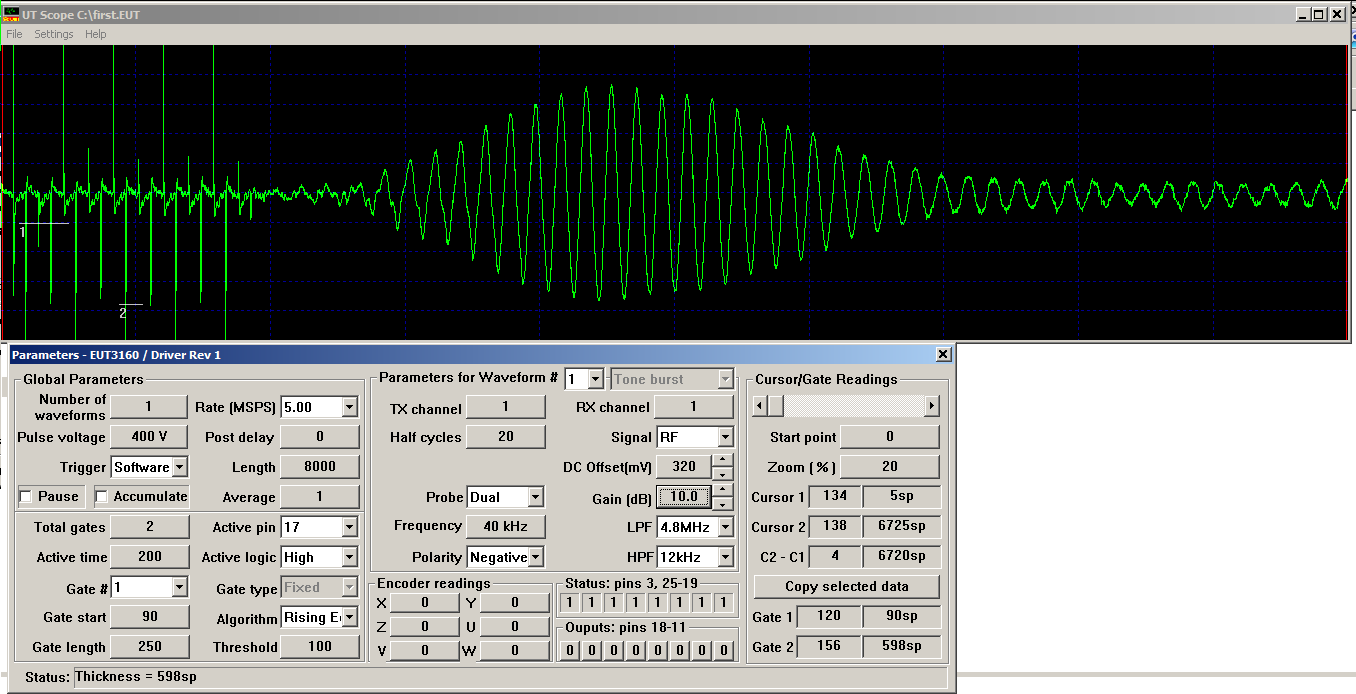

Included UT oscilloscope software for Windows 2000/XP/Win7/Win10

Windows 2000/XP/Win7/Win10 software development kits for C/C++, Visual BASIC, and LabVIEW

DESCRIPTION:

EUT3160 is a combination of a square and tone burst pulser/receiver with an analog-to-digital converter -- both of which are located in a single device for the Ethernet communications. This product comes in five models: 1, 2, 4, 8 and 16 channels . The device generates a series of pulses with user-defined pulse frequency and pulse cycles from T connectors. The pulses are transmitted to an ultrasonic transducer, and the transducer converts the electrical excitation pulses to ultrasound which is propagated into either the tested material or air. The transducer also receives the reflected echoes from the interface and converts the ultrasound back into an electrical signal. The on-board receiver processes the signal with the user defined parameters, and the A/D converter converts analog signals into digital data at a rate of up to 160 million samples per second. In addition, the digital data is transferred to the  computer’s RAM.

Adjustable parameters include pulse frequency, pulse cycles, receiver gain, DC offset, rectifications, sampling rates, trigger source, and adjustable trigger delay. A standard scope software for MS Windows is included with this device. One of the unique features is the on-board FPGA chip witch is capable of processing data in real-time for peak detection, data compression, averaging, spray marker control, factory process control and feedback. With the on-board micro-controller, the device can run stand alone as a remote tone burst pulser/receiver and data processing system without being connected to a computer. The user can set up the parameters through the Ethernet and then save the parameters in the non-volatile memory. The device can load the parameters automatically after the device is powered up without any control from the computer.

So EUT3160 can be used as a smart flaw detector and distance measuring device with various software running at real-time. Custom software is available for your applications upon request.

SPECIFICATIONS:

All Pulsers:

PRF                         1Hz to 20,000Hz

Damping                500 ohms

Transducer Mode  Software controllable single or dual elements

Polarity                   Negative

Channels available 1, 2, 4, 8, and 16

Square Pulser:

Pulse Width           20 to 2,000 ns

Pulse Voltage        25V to 400V in 256 steps

Tone Burst Pulser:

Pulse Frequency   20 kHz to 30 MHz

Pulse Voltage        +/-13V to +/-200V in 256 steps

Number of Pulses  1 to 32 half cycles

Receiver:

Receiver Gain        0 dB to 84 dB in 0.1dB increments.

DC Offset               -2.5V to 2.5V in 5mV increments

Low Pass Filter     All, 48, 16, 9, 4.8, 1.6, 0.6, and 0.16 MHz

High Pass Filter    22, 12, 7, 3.7, 1.2, 0.46, 0.12, and 0.012 MHz

Waveform              Full rectify, + half rectify, - half rectify, or RF

Band Width           Receiver band width up to 30 MHz

Digitizer:

Sampling Rate      160, 80, 40, 20, 10, 5, and 2.5 MHz

Resolution             8-bit (0 - 255) or 12-bit (0 - 4095) software selectable

Waveform Length  16 to 32,768 samples in 2 sample step

Trigger Source      +External, -external, internal or software

Connectors           LEMO 00 connectors for pulse out and receive in

Trigger delay         0 to 32,768 samples in 2 sample step

PC Interface           Ethernet 100BASE-T

Dimensions           4-channel: 4.2"x5.65"x1.55” (107mmX143mmX40mm)

                                8-channel: 8.4"x6"x1.75” (213mmX153mmX44mm)

                                16-channel: 8.4"x6"x3.5” (213mmX153mmX88mm)

Power Supply        +10VDC to 24VDC @0.5A with battery monitoring

Weight                    1.5 pounds to 3 pounds

Add-on Options   Up to 6 encoder counters

                               16 digital I/O, two 10-bit ADCs and encoder connector

                               EXT TRIG with LEMO 00 (or BNC) connector

                               2, 4, 8, 16, and 32 channels

                               Tone burst pulsers and dual pulser types

                               SYNC OUT with LEMO 00 (or BNC) connector

                               Up to 2 14-bit ADC with user defined input range

                               8 hour 12V battery pack in water tight box

                               Analog signal output 1V peak-peak of RF signal into 50 ohms load with a BNC connector

                               Customize high pass filter

                               Battery monitoring option

                               Windows software development kits for LabVIEW,

                               MS C/C++ and Visual BASIC

                               Distance Amplitude Correction DAC with 16,384 cell table, fixed and floating DAC curve to interface gate

Part Numbers:
EUT3160             Single channel ultrasonic pulser/receiver device and 160MSPS/12-bit A/D converter             Download PDF data sheet
EUT3160M2       2 channel ultrasonic pulser/receiver with 160MSPS/12-bit A/D converter
EUT3160M4       4 channel ultrasonic pulser/receiver with 160MSPS/12-bit A/D converter

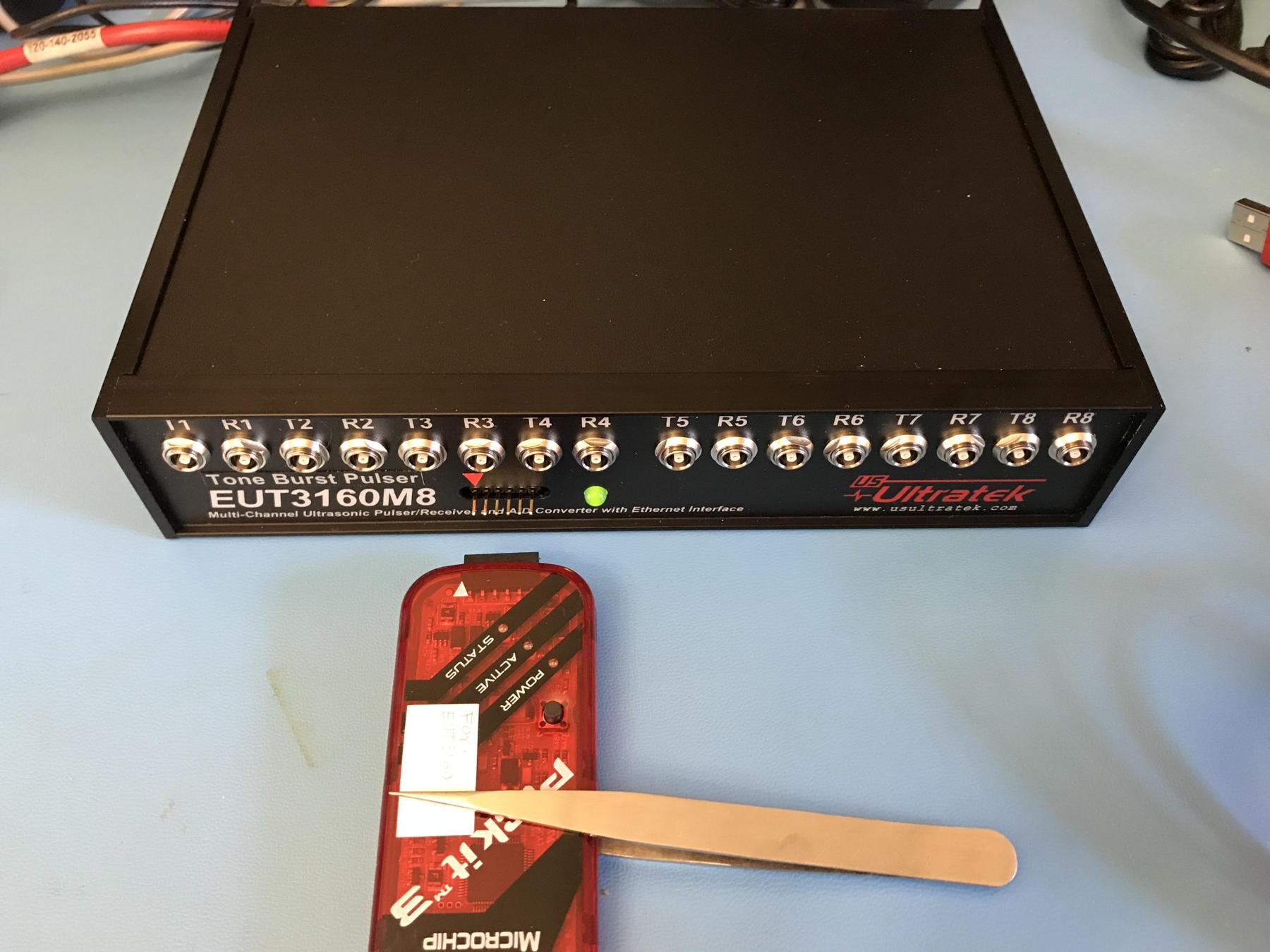

EUT3160M8       8 channel ultrasonic pulser/receiver with 160MSPS/12-bit A/D converter
EUT3160M16     16 channel ultrasonic pulser/receiver device and 160MSPS/12-bit A/D converter
EUT3160T           Single channel ultrasonic tone burst pulser/receiver device and 160MSPS/12-bit A/D converter
EUT3160M2T      2 channel ultrasonic tone burst pulser/receiver device and 160MSPS/12-bit A/D converter
EUT3160M4T      4 channel ultrasonic tone burst pulser/receiver device and 160MSPS/12-bit A/D converter
EUT3160M8T      8 channel ultrasonic tone burst pulser/receiver device and 160MSPS/12-bit A/D converter
EUT3160M16T    16 channel ultrasonic tone burst pulser/receiver device and 160MSPS/12-bit A/D converter
