DSPUT5000(T) with PCI Bus Interface

FEATURES:

On board DSP Chip for the world’s fastest ultrasonic data processing and custom real-time applications

Single-board design: Pulser/receiver and A/D converter on one PCI board

Up to 100MSPS high-speed A/D conversion and data compression

32-bit master mode PCI bus for an ultra-fast data transfer rate

Up to 6 on-board encoder counters featuring optional position based data acquisition

Time stamps, 6-axis position, and I/O status for each A-scan

256-channel automatic timing and switching capability when coupled with DT16B

Distance gain correction (DAC) for all 256 channels

800 KB buffer memory to ensure real-time operation

Pulser switch-off during data acquisition for low noise operation

Wide-range dynamic gain

Pulse voltage of up to 900V

UT oscilloscope software for Windows 2000/XP/Win7/Win10 32-bit Included

Windows 2000/XP/Win7/Win10 32-bit software development kits (DSPSDK) for C/C++, Visual BASIC, and LabVIEW

DESCRIPTION:

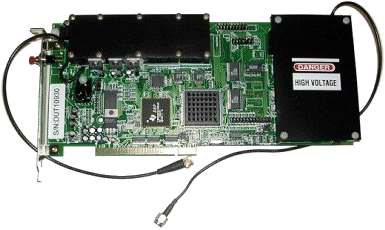

The DSPUT5000 ultrasonic testing board is a combination pulser/receiver and high-speed analog to digital converter on a single PCI board. The board generates an electrical pulse which is transmitted to an ultrasonic transducer. The transducer converts the electrical excitation pulse to an ultrasonic pulse which then propagates into the test material or couplant. The transducer also receives the echoes that are reflected back from the interface and converts the ultrasonic pulse back into an electrical signal which is then processed by the on-board receiver and analog to digital converter.

This process is entirely adjustable by the end user—configurable properties include: pulse voltage, pulse width, damping, pulse/echo or through transmission mode, receiver gain, DC offset, low-pass filter, high-pass filter, rectification, sampling rate, trigger source—internal or external, and trigger delay.

One of the unique features of the DSPUT5000 is the on-board DSP chip from Texas Instruments. Running at 600 MHz it executes up to 4.8 giga-instructions per second and is capable of processing data at high speeds for real-time peak detection, data compression, spray marker control, factory process control and feedback. The on-board DSP chip enables the DSPUT5000 to run standalone as a remote pulser/receiver and data processing system with host control through an RS232 serial port. A DSP software development kit is available for customized data processing applications.

When used in conjunction with our DT16B 16-channel pulser/receiver switching board, the DSPUT5000 becomes a multi-channel ultrasonic inspection and analysis system capable of up to 256 channels. Multiple DSPUT5000 boards can also be installed in one computer to develop a multi-channel ultrasonic system capable of firing multiple transducers and acquiring data at the same time.

SPECIFICATIONS:

Pulse Voltage        -40V to -300V, 256 steps.Higher voltages are available upon request.

Pulse Width           50 ns to 484ns, 256 steps. Optional 15 ns is available upon request.

Damping                620Ω, 340Ω, 200Ω, 160Ω, 60Ω, 55Ω, 50Ω, or 47Ω

Internal Trigger     1 Hz to 5000 Hz in 1 Hz increments when internal trigger is selected. Optional high PRF available.

Receiver Gain        0 dB to 80 dB in 0.1dB increments.

DC Offset               -2.5V to 2.5V in 5mV increments

Low Pass Filter     All, 48MHz, 28MHz, 18MHz, 8.8MHz, 7.5MHz, 6.7MHz, or 5.9MHz

High Pass Filter    4.8MHz, 1.8MHz, 0.8MHz, or 0.6MHz

Waveform              Full rectify, + half rectify, - half rectify, or RF

Sampling Rate      100MHz, 50MHz, 25MHz, 12.5MHz, 6.25MHz, 3.125MHz, and1.5725MHz (optional 160 MHz)

Resolution             8 bits (0 to 255)

Memory                  800 kilo samples

Waveform Length  16 to 16382 in 4 sample steps

Trigger Source      +external, -external, internal or software

Connectors           2 BNC connectors: Pulse out, and receiver in

Post Trigger delay   4 to 32764 samples in 2 sample steps

Dimensions           9.75"x4.25" not including BNC and PCI edge connectors

Add-on Options   - BNC external trigger connector

                               - BNC trigger sync output connector

                               - 160 MHz sampling rate

                               - 4 channels on one board DSPUT5000-4

                               - High pulse voltage up to 600 volts

                               - Distance gain correction (DAC)

                               - Up to 6 encoder counters

                               - Up to two additional 14-bit A/D converters

                               - 20,000 Hz high PRF option

                               - 16-bit digital I/O

                               - Standalone operation with RS232 communication

                               - DSP software development kit

                               - Tone burst pulser

                               - Windows software development kits

Part Numbers:
DSPUT5000-4      High performance 4 channel ultrasonic pulser/receiver card and 100MHz A/D card
DSPUT5000M      High performance multi-channel version of high-speed data processing pulser/receiver card
DSPUT5000          High performance single channel high-speed data processing pulser/receiver card and 100MHz A/D card       Download PDF data sheet
